OpenCAM — Autonomous Maker-Checker Framework
Engineered a dual-agent LLM pipeline with deterministic policy gating, targeting a cut in CAM drafting time from a business day to 15–30 minutes.
The takeaway: A real correctness bug: a debt-free company's DSCR silently computed as 0 instead of undefined, caught before it could reach a credit committee. Concrete proof the governance model works in practice.
Role
Product Manager — strategy, prompt architecture, policy rules; directed Claude Code for all implementation
Timeline
Sep 2026 · ongoing
Stack
Python · Claude Code · Anthropic API · Deterministic policy engine
Status
Early-stage · validated with one analyst to date
Problem
What was broken
I watched my wife, a corporate credit analyst, prepare Credit Assessment Memorandums every day against hard credit-committee deadlines — manual financial spreading, then drafting a narrative under time pressure with real reputational risk if a number was wrong. She's running several deals at once, and borrower financials arrive as PDFs or spreadsheets from relationship directors, often before the accounts are even filed with Companies House.
Early attempts at using an LLM to draft the memo directly were faster but untrustworthy: grounding was only ever a "cite your source" prompt instruction, not an enforced rule, so an unsupported claim could reach committee undetected — and a codebase audit later caught a debt-free company's DSCR being silently computed as 0 instead of undefined, which would have wrongly flagged a healthy borrower as a covenant breach.
- One rigid spreading schema couldn't handle real deal variety — a borrower embedding Depreciation inside Cost of Goods Sold, a real house convention, broke the single schema the MVP shipped with.
- The pipeline assumed every deal wanted the full automation stack — there was no way to ask for just the qualitative research while spreading a non-standard deal by hand.
Scope
What I scoped into MVP v1, and what I explicitly didn't
Must have
MVP — shipped in PRs #1–20
- CAM template system
- Spreading engine with formula validation
- .docx export
- The Maker-Checker governance loop itself
- Deterministic policy engine layered on LLM narrative
- Critical correctness/security fixes before wider use
Should have
Fast-follow — shipped in PR #24
- Wiring policy checks into the primary slash-command interface, not just the headless script
Could have
Post-MVP depth — ✓/✗ shows what's actually shipped since
- Forward-year projections & stress testing
- Conditions Subsequent tracking, Net Debt/EBITDA & FCF ratios
- Source-citation hyperlinking
- AML/sanctions/PEP screening & ESG scoring
Won't have
Explicitly deferred
- Multi-currency/FX support — today's desk is GBP-only
- Full covenant step-down/cure-period modeling — scoped down to just Conditions Subsequent tracking
Product
What it does
Maker-Checker Governance Loop
Two independent agents — an Underwriter drafts, a Risk Reviewer audits — with no shared reasoning context, and the power to only downgrade a verdict, never upgrade one. Maker and Checker can run on different underlying models, so drafting and audit don't share the same blind spots.
Deterministic Policy & Compliance Engine
Every covenant is evaluated PASS / FAIL / UNRESOLVABLE against a ratio computed from raw financials — never silently defaulted. Every reported figure is checked against ground-truth financials within a 0.5% tolerance before the Checker even sees it.
Institutional Credit Policy Referencing
A one-time /calibrate-policy command derives a fork-local credit policy from an institution's own policy documents. The Underwriter treats it as advisory drafting guidance; the Risk Reviewer treats it as a mandatory, independently-verified audit obligation — any violation is REJECTED-worthy regardless of what the Underwriter declared, the same asymmetric-weight pattern used everywhere else in the governance model.

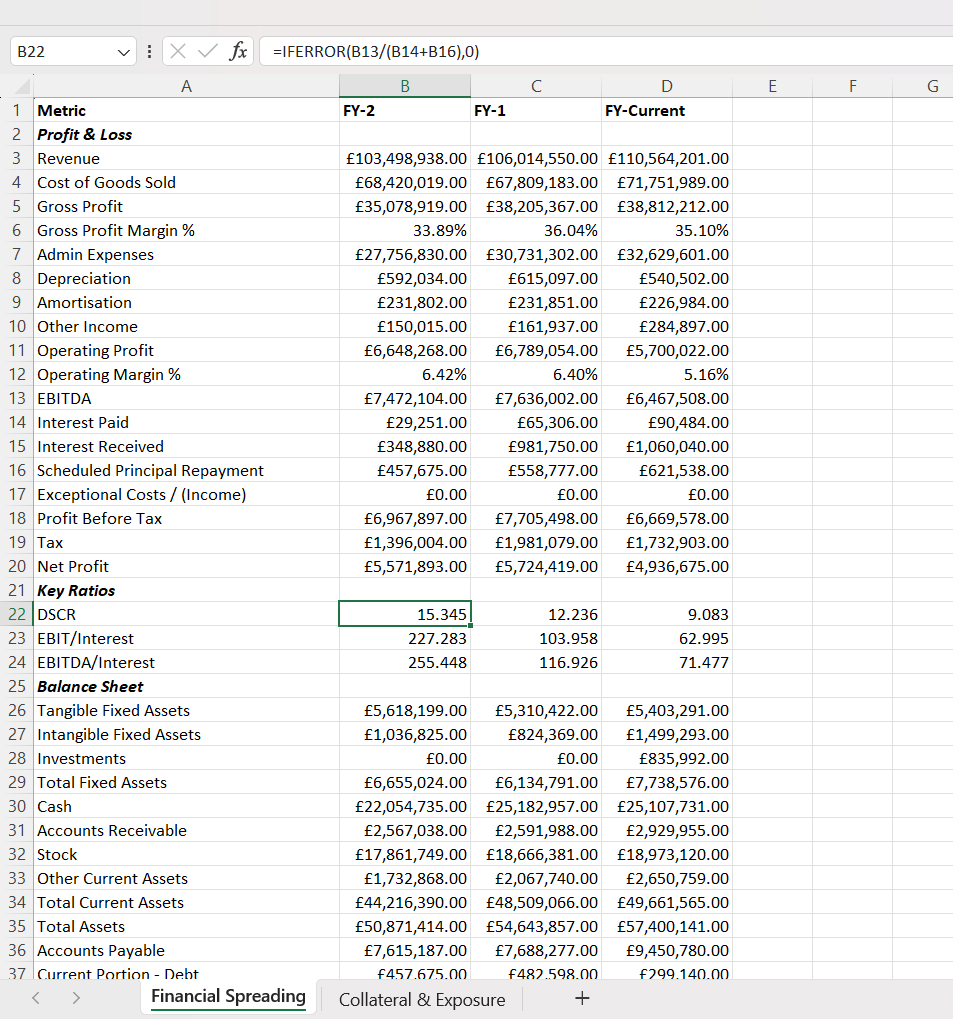

Financial Spreading & Auditable Excel Export
Every ratio (TNW, EBITDA, DSCR, Gross Leverage, Net Debt/EBITDA, FCF Conversion %) is computed straight from the same raw line items shown in the workbook, with formulas generated from a label-based row layout so a reorder can't silently break a reference. An analyst can also supply figures already spread against their own institution's template instead: the CAM then carries an explicit caveat disclosing the spreading wasn't independently recomputed, a real reduction in audit guarantee.
Confidentiality-by-Design
Every artifact derived from a user's real business — calibration samples, templates, deal state, output — writes only to git-ignored paths, enforced as a build rule, not audited in after the fact.
Standalone Research Workflow (/research)
A separate command for an analyst who just needs the qualitative picture — company and sector research, Go/No-Go screening — without running the full CAM pipeline. It writes the same state.json keys the full pipeline would, so a deal that later needs a full CAM can continue straight in without redoing anything, and exports its own standalone Research Brief through a script kept deliberately separate from the full CAM exporter.
Workflow
How the pipeline actually connects
Two entry points, one shared spine. Every deal starts at /triage for a full CAM or /research for a standalone qualitative brief. Both write the same state, so a deal can continue into the full pipeline later without redoing work. A deal continuing from /research rejoins directly at /spread and skips /commercial, since /research already produced that output itself.
/calibrate and /calibrate-policy (above the divider) are one-time, org-level setup: /calibrate derives house writing style and a CAM template; /calibrate-policy derives an institution's own credit policy. Every deal afterward just reads whichever is already in place.
Strategy
Validation & strategic context
This framework is early-stage, built and validated with one target user — my wife, a corporate credit analyst. I'd rather show the reasoning openly than present these as more settled than they are.
Built to augment, not replace
My wife never had access to a platform like nCino or Moody's CreditLens at her workplace, so this isn't a competitive swap-out — it fills a gap that simply existed for her. It's also deliberately scoped to speed up a first draft with an inspectable audit trail, not replace her judgment the way larger, better-resourced platforms are attempting.
Unit economics
Slash commands shell out to the same local policy-check modules as the headless script — no separate metered API bill per step beyond the analyst's existing Claude Code access, against a target of multiple hours of analyst time per deal if the 15–30 minute goal holds at scale.
Enterprise adoption
Because it runs locally and writes nothing but git-ignored files, an analyst or a bank could use it without sending a single confidential figure to a third-party service, and without IT needing to approve a new vendor integration into core banking systems.
Process
How I worked it
Started from watching a real workflow break down
Modeled the primary persona directly on my wife's own day as a credit analyst — the actual friction was manual spreading and narrative drafting under deadline pressure, not a problem I picked because it sounded interesting.
Shipped the Maker-Checker loop in one day

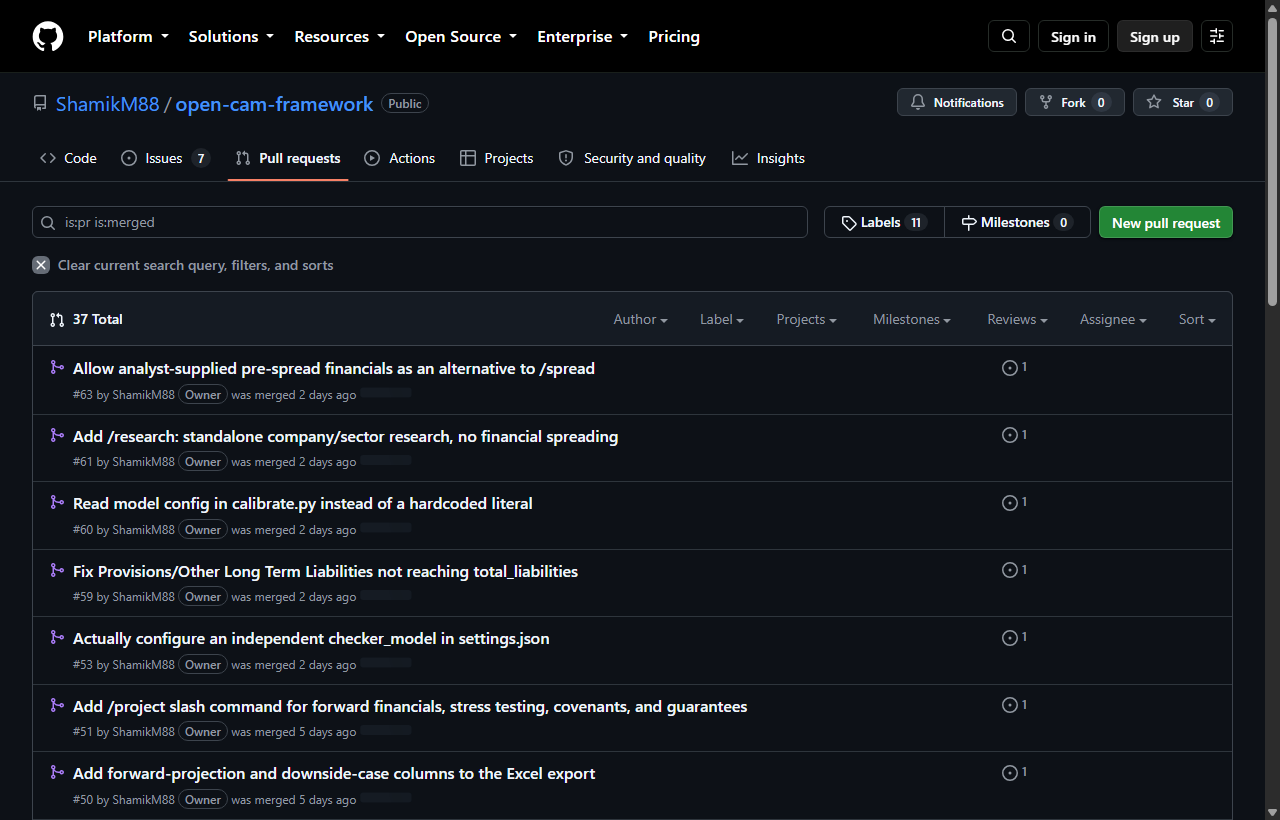

Scoped the MVP tightly — 20 merged PRs in a single day — around one correct, end-to-end loop before going deep on any single feature: template system, spreading engine, .docx export, and the governance loop itself.

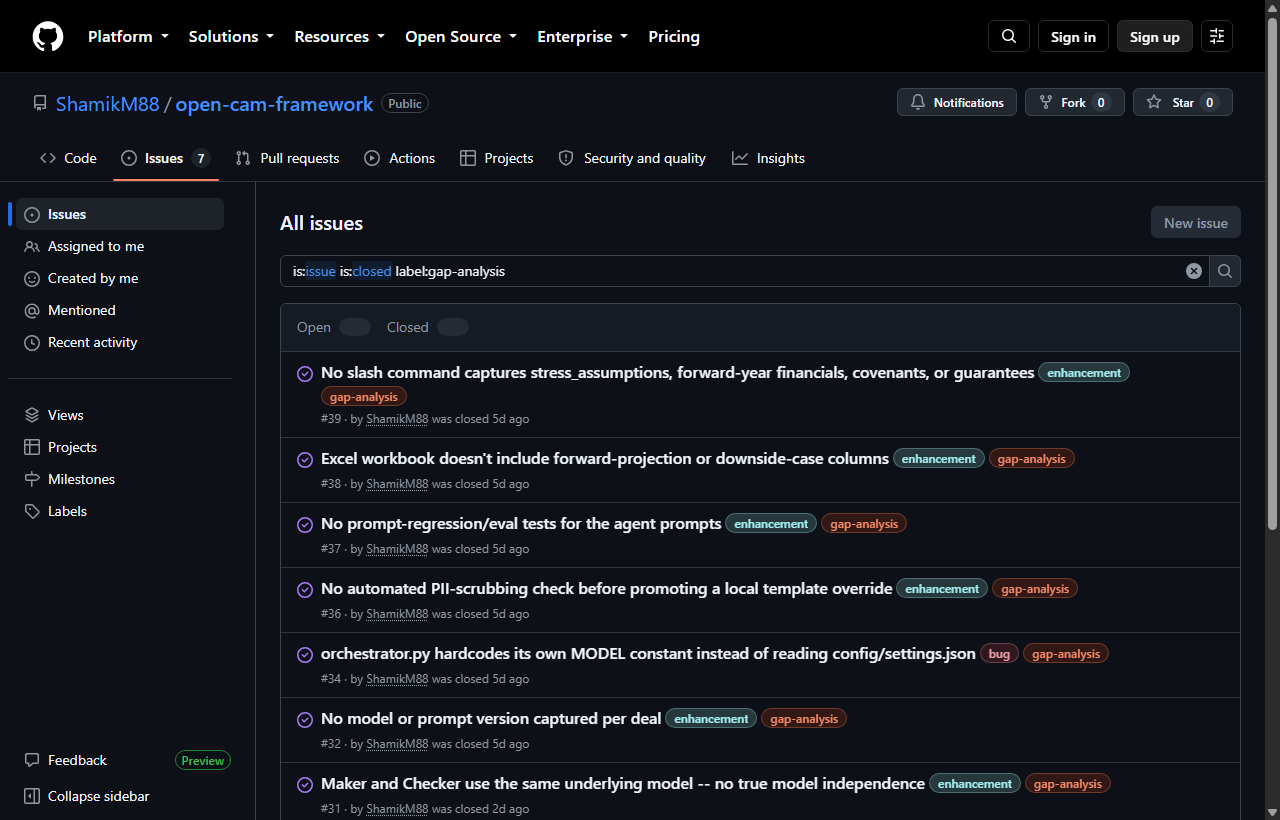

Ran a dedicated gap-analysis audit, sequenced by risk
Once the MVP worked, I audited the live codebase for 19 further issues and merged fixes in risk-weighted severity order — correctness and security bugs first, cosmetic issues after, feature work last.
Reprioritized around real feedback from a live deal
Two items came directly from my wife hitting the pipeline's limits on a real deal — a rigid spreading schema and an all-or-nothing automation model — and I pulled both to the top of the queue and shipped them the same week.
Outcomes
What changed
15–30 min
time-to-first-draft target, from ~1 business day
439+
passing tests (up from 188 at MVP)
0
financial figures the model is allowed to compute itself
- Trust turned out to be a product feature: the debt-free-DSCR catch is concrete evidence that code-level verification, not model judgment, is what makes the loop actually trustworthy.
- Real usage surfaced the two highest-value roadmap items faster than the original audit backlog did — ship it, use it, let real friction drive the backlog.
Next horizon
What I'm scoping for round 2 ("Hardening Cycle 2")
MVP v1 shipped and is already in real use. This next MoSCoW pass follows it, in the same priority order as round 1: fix foundational gaps before adding polish.
Must have
Foundational correctness/architecture gaps
- Fix the dangling Parent/UBO Guideline cross-reference — the template already points to guidance that was never written (#96)
- Wire the primary interface through to the tested financial-formula code, not around it (#98)
- Extend the ground-truth figures schema to cover metrics the framework already requires citing — Working Capital Days, collateral exposure (#99)
Should have
Fast-follow depth
- Systematic Parent/UBO research guidance — full ownership chain, ownership percentages, recent ownership changes, and the materiality judgment call for when it warrants a full Ultimate Parent section (#96)
Could have
Post-round-2 depth, if capacity allows
- HoldCo/OpCo group/subsidiary financial consolidation (#48)
- Render Group/Parent/UBO structure as a tree diagram instead of prose (#113)
- Charts/graphs in CAMs — sector trends, SWOT, positioning, stock price (#114)
Won't have
Deferred for this round
- Full covenant step-down/cure-period modeling (#33) — same bundled-scope call as MVP v1; may be worth revisiting if I ever open this up for wider adoption beyond my own use
- FX/multi-currency support (#49) — today's desk is still GBP-only; the kind of gap that would gate wider adoption if this were ever forked for a multi-currency desk
- AML/sanctions/PEP screening & ESG scoring (#35) — my wife's desk has a separately-owned AML team whose system already supplies this as an input; building it into OpenCAM would duplicate, not fill, a gap
MoSCoW above is how I scoped round 2 itself; this board is how I sequence what's inside it — live from the repo's own issue labels, so it never goes stale the way a hand-maintained backlog table would. Click a point to open the real issue.

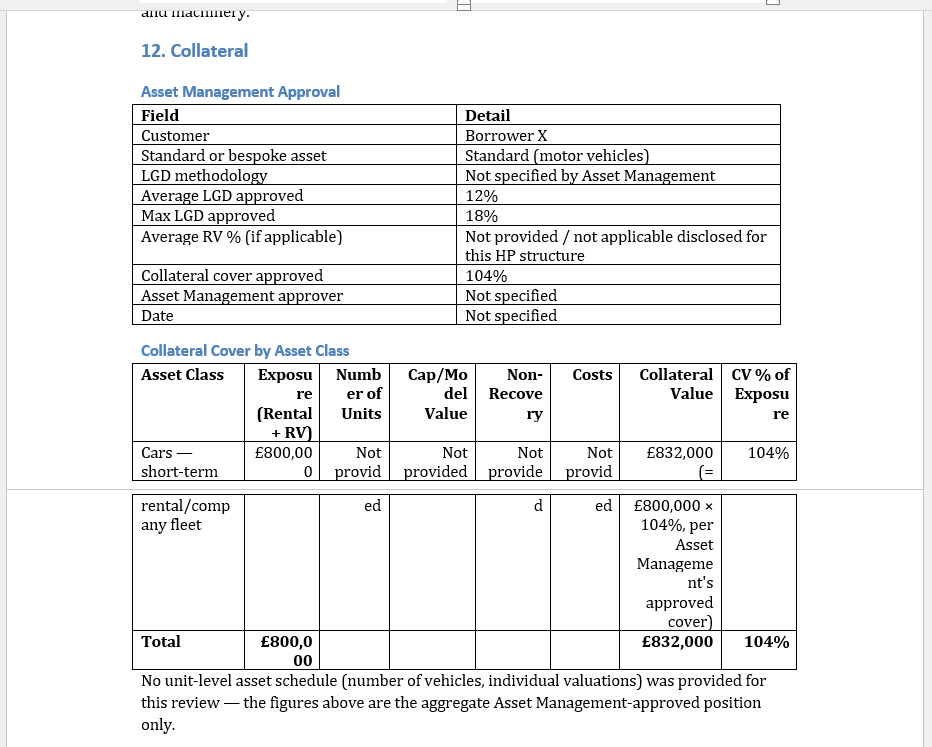

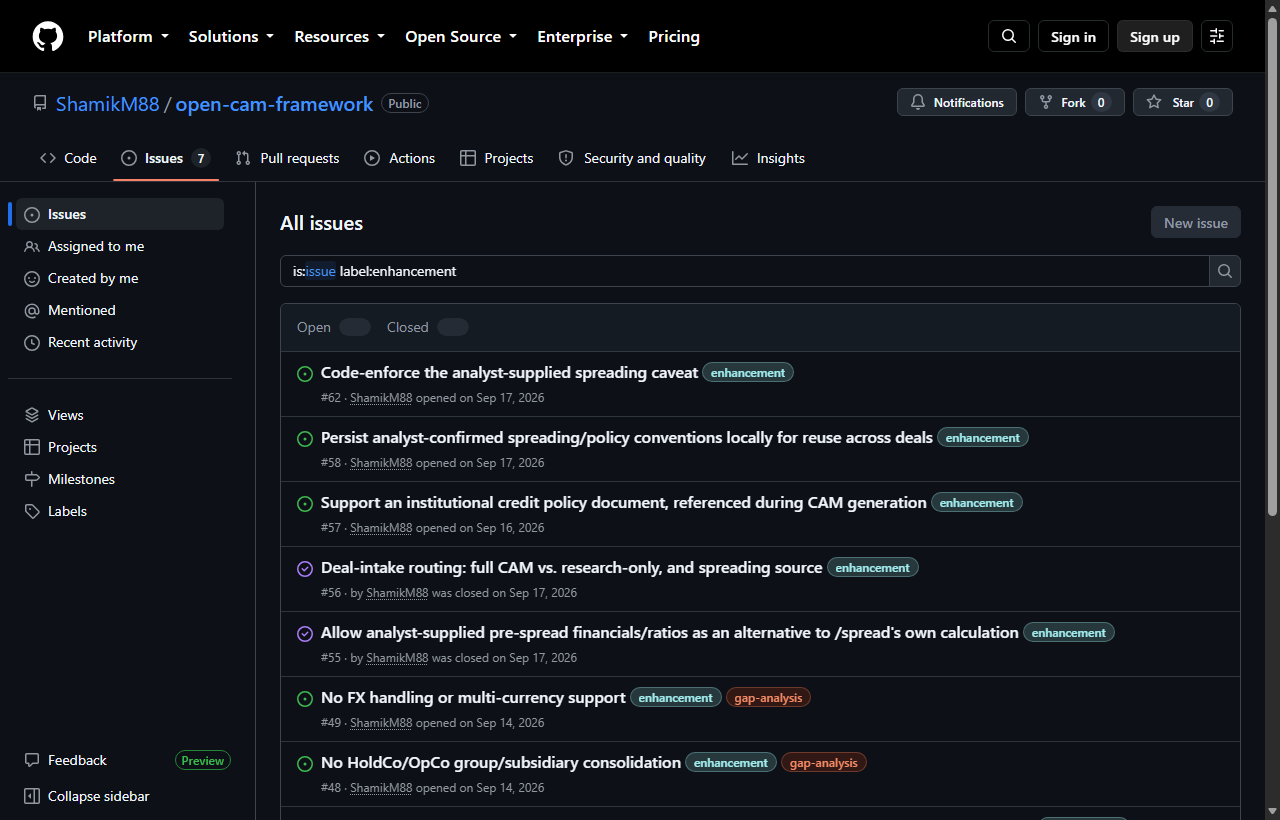

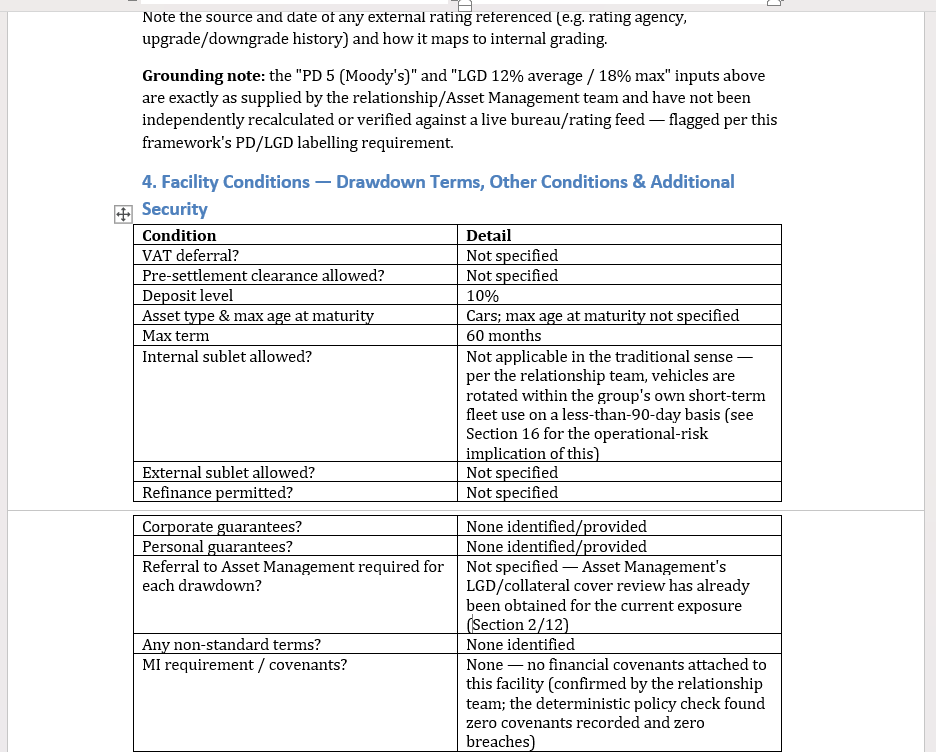

Supporting visuals
Inside the build
